The B/Mc Spray Valve
Designed by Herman Bertolini and manufactured continuously in the USA since 1971. Normally closed, so it will not leak with loss of control pressure. An adjustable opening controls spray pattern and volume, and a grooved inlet gives flexibility in mounting and positioning.
B/Mc is pronounced “bee mack”.
Two models, one valve body
Both models share one valve body and one wet-end rebuild kit. The difference is only how they are actuated.
Pneumatic
The standard valve for trucks with an onboard air system. Randco part 03-001. Formerly the Bertolini 71A-3.
Electric
12VDC or 24VDC for vehicles with no air system. Same body, same wet-end rebuild kit. Randco part 03-013 (12V) or 03-015 (24V). Formerly the Bertolini 71E-3.
Rebuild Kits
Four wear parts, one kit. Fits both models. Randco part 70-064.

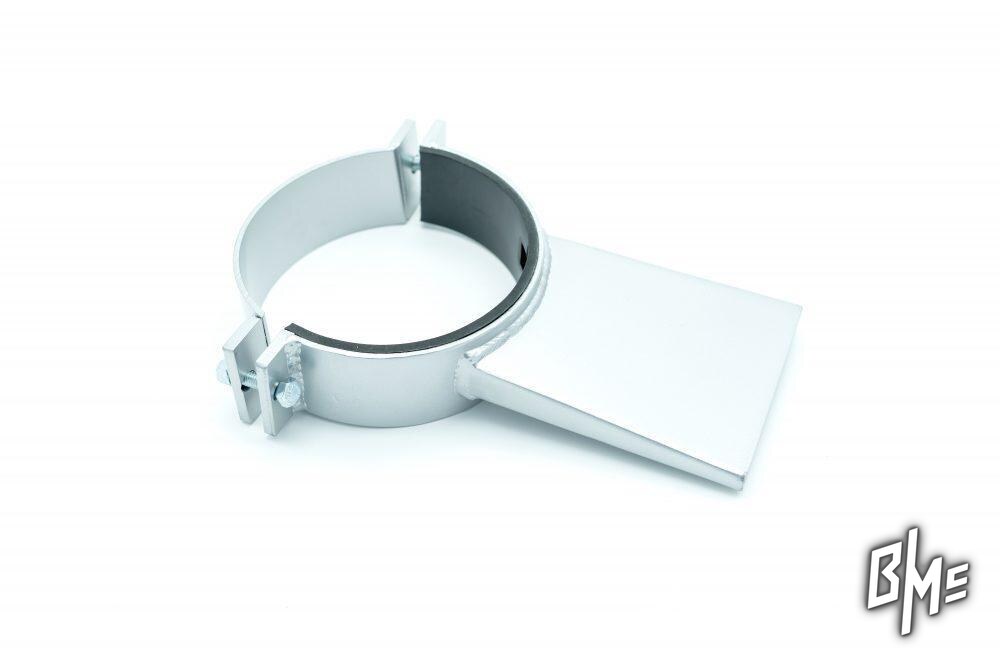

Side spray nozzle
The side spray nozzle bolts onto the outlet of a B/Mc spray valve and turns a front or rear spray into a side spray or street flusher. It is a banded clamp with a flat deflector plate, so it fits the same grooved outlet the valve already has — no plumbing changes and no second valve.

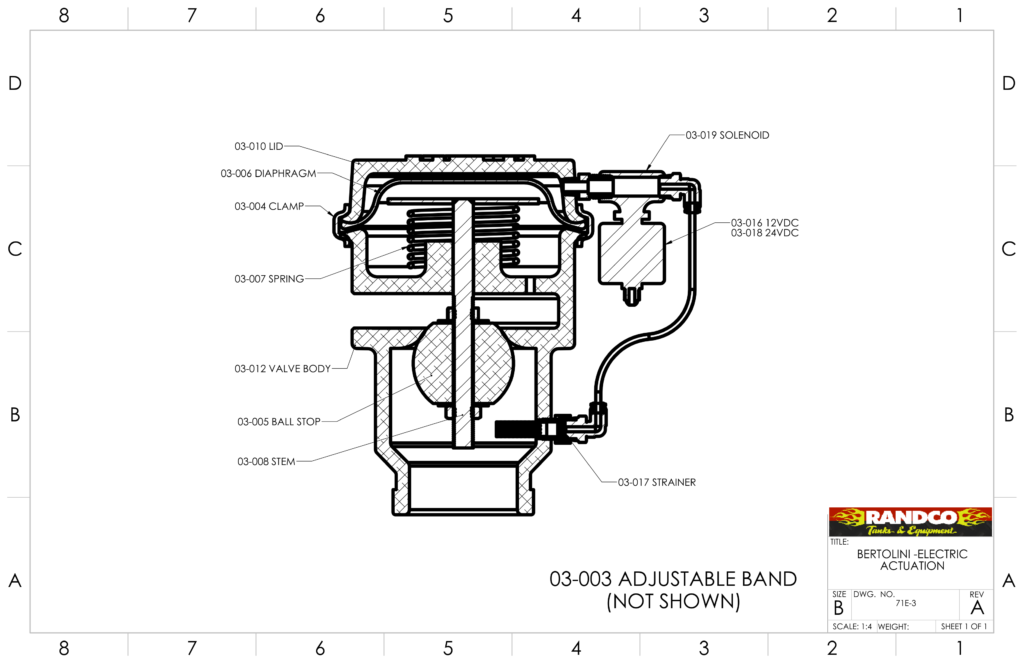

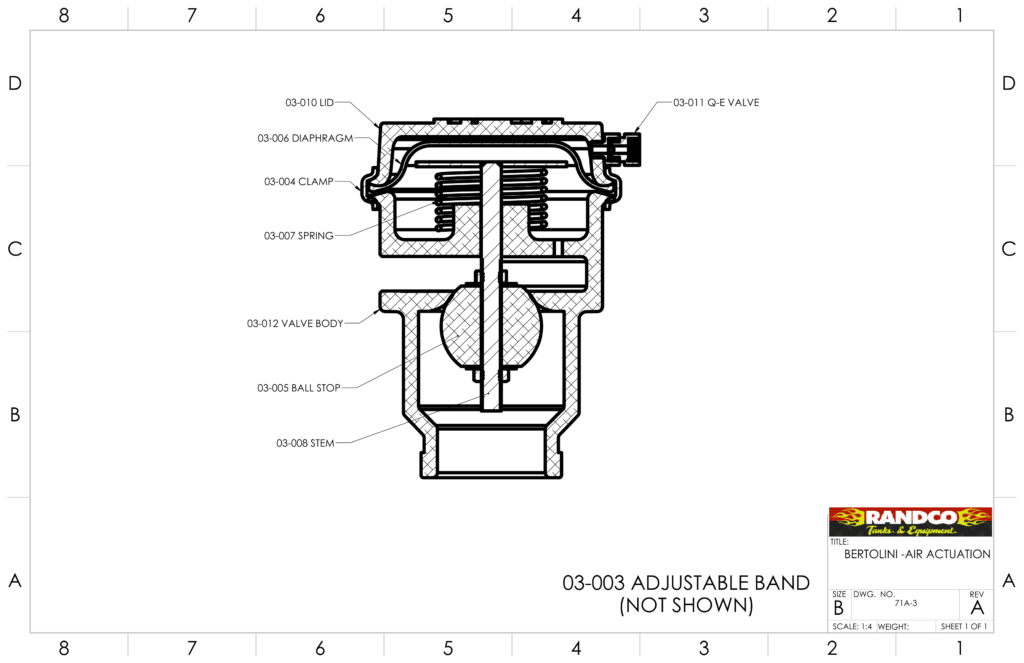

Parts diagrams
Click either drawing to enlarge. The full numbered callout lists live on the parts diagrams page, and every part maps to a stock number in the cross-reference table.
Rebuild kits
Four wear parts, one kit, fits both models. Rebuild Kit 70-064 covers diagram items 4, 5, 6 and 8.
| Item | Part | Randco SKU |
|---|---|---|
| 4 | Rubber ball | 03-005 |
| 5 | Spring | 03-007 |
| 6 | Stem | 03-008 |
| 8 | Diaphragm | 03-006 |
Water Truck Parts and Equipment
- B/Mc Spray Valves — air and electric control
- Akron Brass & Elkhart Brass Monitors
- Berkeley & Gorman-Rupp Pumps
- Muncie PTOs & Hydraulic Pumps & Motors
- Netafim/Dorot Valves
- Inline Valves — air or electric
- Fittings — grooved, weld, threaded
- Nozzles — fixed and adjustable
- Controls — pneumatic and electric
Berkeley Pumps
Bertolini supplies Berkeley and Gorman-Rupp pumps alongside the spray valves, so a water truck can be specified from the pump through to the nozzle.
Proven since 1971
Model 71 B/Mc water truck spray valves are a simple, durable design, proven in use since 1971 —
and honored by imitations.
- Normally closed — lose control pressure and the valve shuts rather than dumping your load.
- Adjustable opening — one valve covers a range of spray patterns and volumes.
- Grooved inlet — mounts and clocks in whatever orientation the truck needs.
- Four wear parts — a rebuild is a shop-floor job, not a replacement.
Contact
For anything the diagrams and guides do not answer — sizing, compatibility, or an unusual application.
